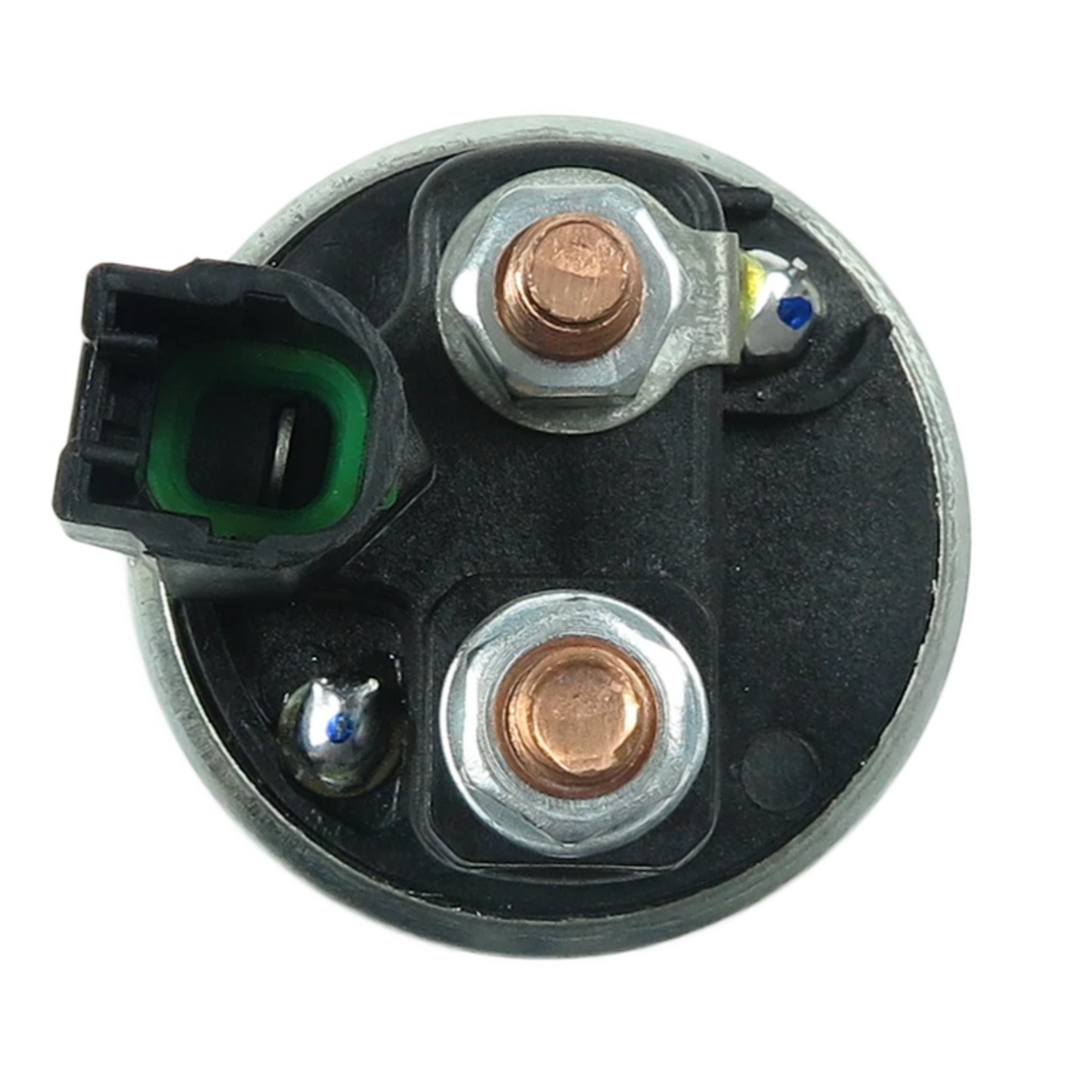

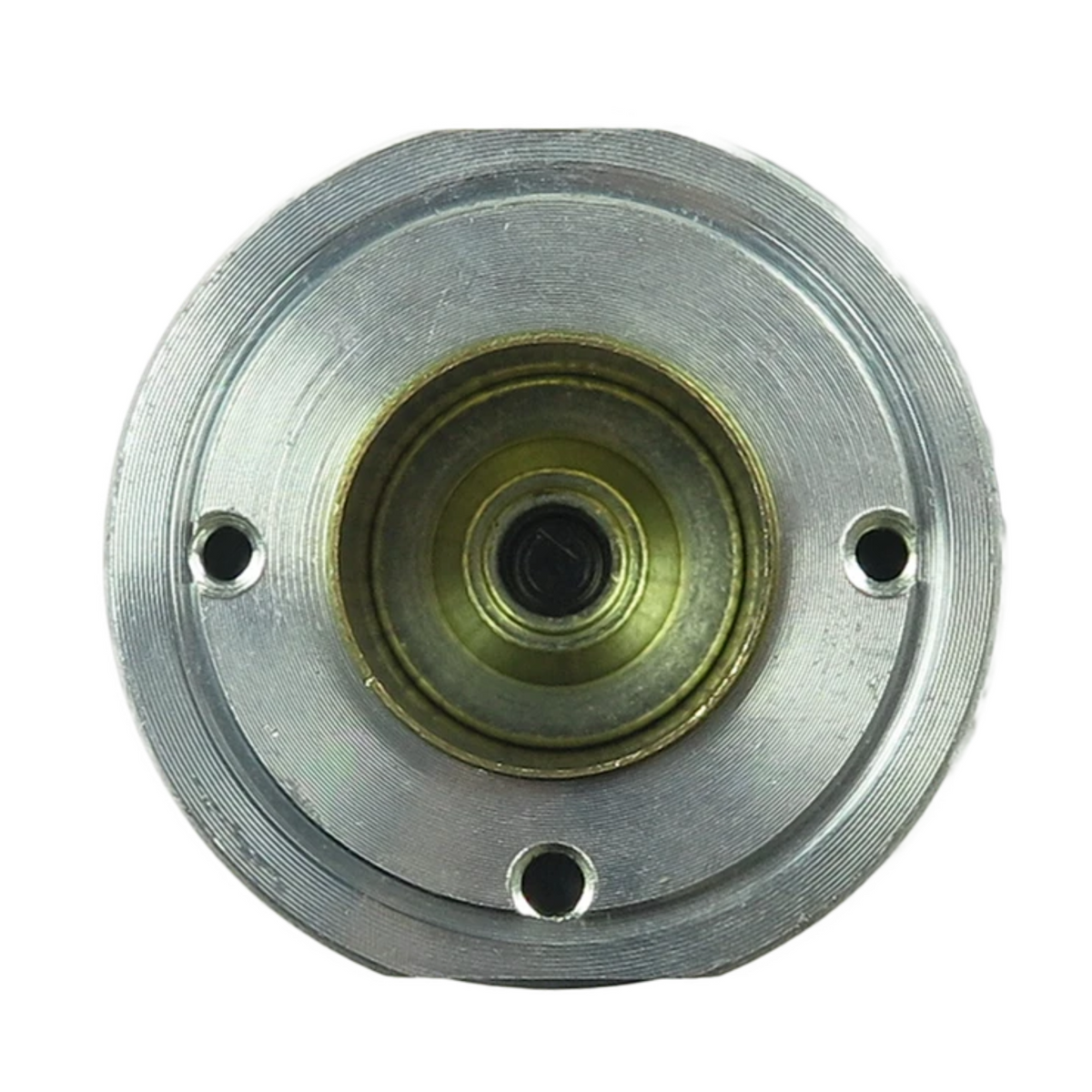

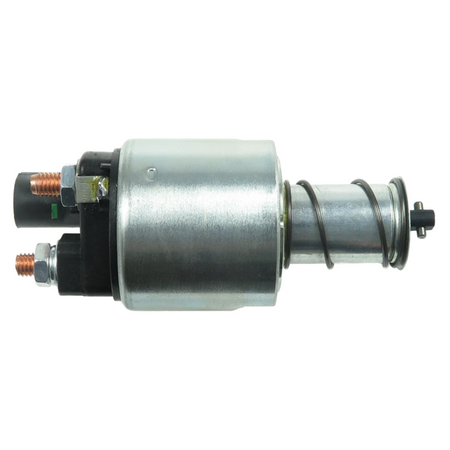

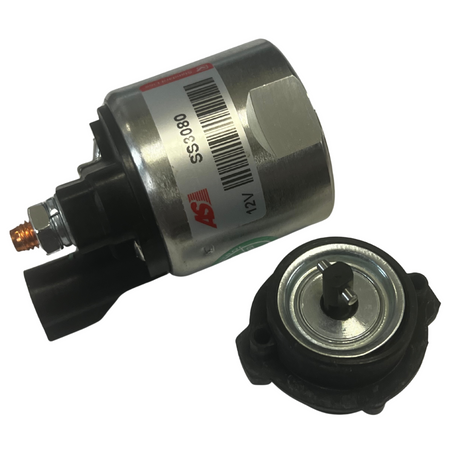

SS3080 Startrelä
Reservdelsnummer: SS3080
Märke: AS-PL
Teknisk information
| Voltage V |
12 |
| I.D.1 mm |
25.10 |
| O.D.1 mm |
53.80 |
| O.D.2 mm |
47.80 |
| L.1 mm |
66.60 |
| B+ mm |
M8x1.25 |
| L.B+ mm |
12.30 |
| Coil bolt mm |
M8x1.25 |
| L.Coil bolt mm |
14.10 |
Referensnummer
| VALEO |
594784 |
| AS-PL |
SS3080 |
| IKA |
4.6012.1 |
| CARGO |
334146 F032334146 |
| ELECTROLOG |
SOL0091 |
| KRAUF |
SSV4784 |
| TOYOTA |
28150-0R020 |
VALEO
| 438220 |
458373 |
| TS24E3 |
TS24E30 |
TOYOTA
LEXUS
| Make |
Model |
Year Range |
Capacity |
Power (kW/HP) |
Engine codes |
| LEXUS |
IS II (_E2_) |
07/2010 - 07/2012 |
200d (ALE20_) |
110/150 |
2AD-FTV |
| LEXUS |
IS II (_E2_) |
08/2005 - 07/2012 |
220d (ALE20) |
130/177 |
2AD-FHV |
TOYOTA
| Make |
Model |
Year Range |
Capacity |
Power (kW/HP) |
Engine codes |
| TOYOTA |
AURIS (_E15_) |
10/2006 - 09/2012 |
2.0 D-4D (ADE150_) |
93/126 |
1AD-FTV |
| TOYOTA |
AURIS (_E15_) |
11/2006 - 09/2012 |
2.2 D (ADE157_, ADE151_) |
130/177 |
2AD-FHV |
| TOYOTA |
AVENSIS (_T25_) |
03/2006 - 11/2008 |
2.0 D-4D (ADT250_) |
93/126 |
1AD-FTV |
| TOYOTA |
AVENSIS (_T25_) |
10/2005 - 11/2008 |
2.2 D-4D (ADT251_) |
110/150 |
2AD-FTV |
| TOYOTA |
AVENSIS (_T25_) |
07/2005 - 11/2008 |
2.2 D-CAT (ADT251_) |
130/177 |
2AD-FHV |
| TOYOTA |
AVENSIS Saloon (_T25_) |
03/2006 - 10/2008 |
2.0 D-4D (ADT250_) |
93/126 |
1AD-FTV |
| TOYOTA |
AVENSIS Saloon (_T25_) |
10/2005 - 11/2008 |
2.2 D-4D (ADT251_) |
110/150 |
2AD-FTV |
| TOYOTA |
AVENSIS Saloon (_T25_) |
07/2005 - 11/2008 |
2.2 D-CAT (ADT251_) |
130/177 |
2AD-FHV |
| TOYOTA |
AVENSIS Saloon (_T27_) |
11/2011 - 10/2018 |
2.0 D-4D (ADT270_) |
91/124 |
1AD-FTV |
| TOYOTA |
AVENSIS Saloon (_T27_) |
11/2008 - 10/2018 |
2.0 D-4D (ADT270_) |
93/126 |
1AD-FTV |
| TOYOTA |
AVENSIS Saloon (_T27_) |
11/2008 - 10/2018 |
2.2 D-4D (ADT271_) |
110/150 |
2AD-FHV, 2AD-FTV |
| TOYOTA |
AVENSIS Saloon (_T27_) |
11/2008 - 10/2018 |
2.2 D-4D (ADT271_) |
130/177 |
2AD-FHV |
| TOYOTA |
AVENSIS Estate (_T25_) |
03/2006 - 01/2008 |
2.0 D-4D (ADT250_, ADT250R) |
93/126 |
1AD-FTV |
| TOYOTA |
AVENSIS Estate (_T25_) |
00/2005 - 01/2008 |
2.2 D-4D (ADT251_, ADT251R) |
110/150 |
2AD-FTV |
| TOYOTA |
AVENSIS Estate (_T25_) |
07/2005 - 01/2008 |
2.2 D-CAT (ADT251_, ADT251R) |
130/177 |
2AD-FHV |
| TOYOTA |
AVENSIS Estate (_T27_) |
01/2011 - 00/2018 |
2.0 D-4D (ADT270_, ADT270R) |
91/124 |
1AD-FTV |
| TOYOTA |
AVENSIS Estate (_T27_) |
01/2008 - 00/2018 |
2.0 D-4D (ADT270_, ADT270R) |
93/126 |
1AD-FTV |
| TOYOTA |
AVENSIS Estate (_T27_) |
01/2008 - 00/2018 |
2.2 D-4D (ADT271_, ADT271R) |
110/150 |
2AD-FHV, 2AD-FTV |
| TOYOTA |
AVENSIS Estate (_T27_) |
01/2008 - 00/2018 |
2.2 D-4D (ADT271_, ADT271R) |
130/177 |
2AD-FHV |
| TOYOTA |
COROLLA Saloon (_E15_) |
11/2006 - 07/2014 |
2.0 D-4D (ADE150) |
93/126 |
1AD-FTV |
| TOYOTA |
COROLLA Verso (ZER_, ZZE12_, R1_) |
10/2005 - 03/2009 |
2.2 D-4D (AUR10_) |
100/136 |
2AD-FTV |
| TOYOTA |
COROLLA Verso (ZER_, ZZE12_, R1_) |
10/2005 - 03/2009 |
2.2 D-4D (AUR10_) |
130/177 |
2AD-FHV |
| TOYOTA |
RAV 4 III (_A3_) |
12/2008 - 06/2013 |
2.2 D (ALA35_) |
110/150 |
2AD-FHV, 2AD-FTV |
| TOYOTA |
RAV 4 III (_A3_) |
02/2006 - 12/2012 |
2.2 D 4WD (ALA30_) |
100/136 |
2AD-FTV |
| TOYOTA |
RAV 4 III (_A3_) |
12/2008 - 06/2013 |
2.2 D 4WD (ALA30_) |
110/150 |
2AD-FHV, 2AD-FTV |
| TOYOTA |
RAV 4 III (_A3_) |
02/2006 - 06/2013 |
2.2 D 4WD (ALA30_) |
130/177 |
2AD-FHV |
| TOYOTA |
VERSO (_R2_) |
11/2012 - 08/2018 |
2.0 D-4D (AUR20_) |
91/124 |
1AD-FTV |
| TOYOTA |
VERSO (_R2_) |
04/2009 - 08/2018 |
2.0 D-4D (AUR20_) |
93/126 |
1AD-FTV |
| TOYOTA |
VERSO (_R2_) |
04/2009 - 08/2018 |
2.2 D-4D (AUR21) |
100/136 |
2AD-FHV |
| TOYOTA |
VERSO (_R2_) |
04/2009 - 08/2018 |
2.2 D-4D (AUR21_) |
110/150 |
2AD-FHV |
| TOYOTA |
VERSO (_R2_) |
04/2009 - 08/2018 |
2.2 D-CAT (AUR21_) |
130/177 |
2AD-FHV |
| TOYOTA |
VERSO VAN (_R2_) |
01/2012 - 08/2018 |
D4d (AUR20) |
91/124 |
1AD-FTV |
| TOYOTA |
VERSO VAN (_R2_) |
04/2009 - 08/2018 |
D4d (AUR21) |
130/177 |
2AD-FHV |
