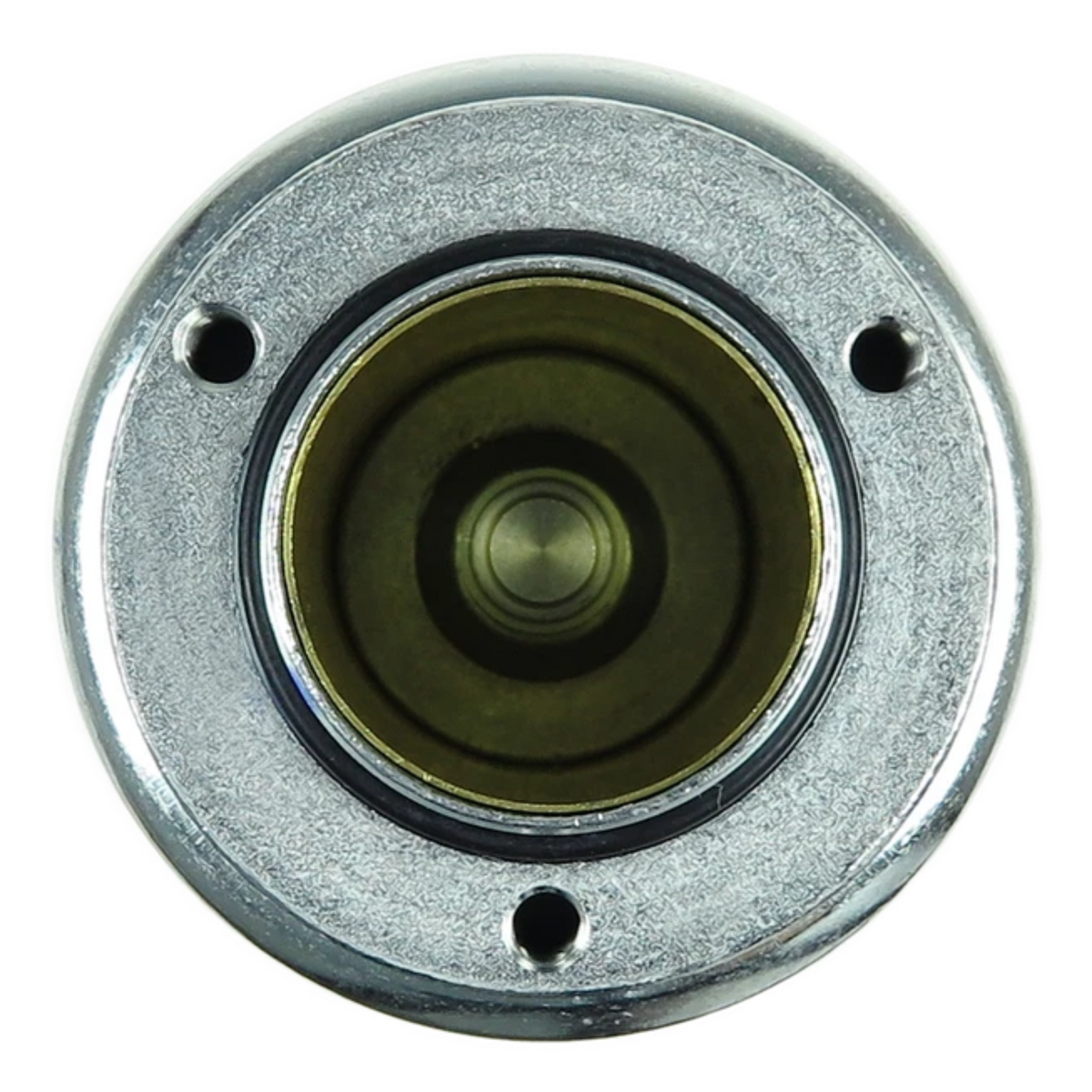

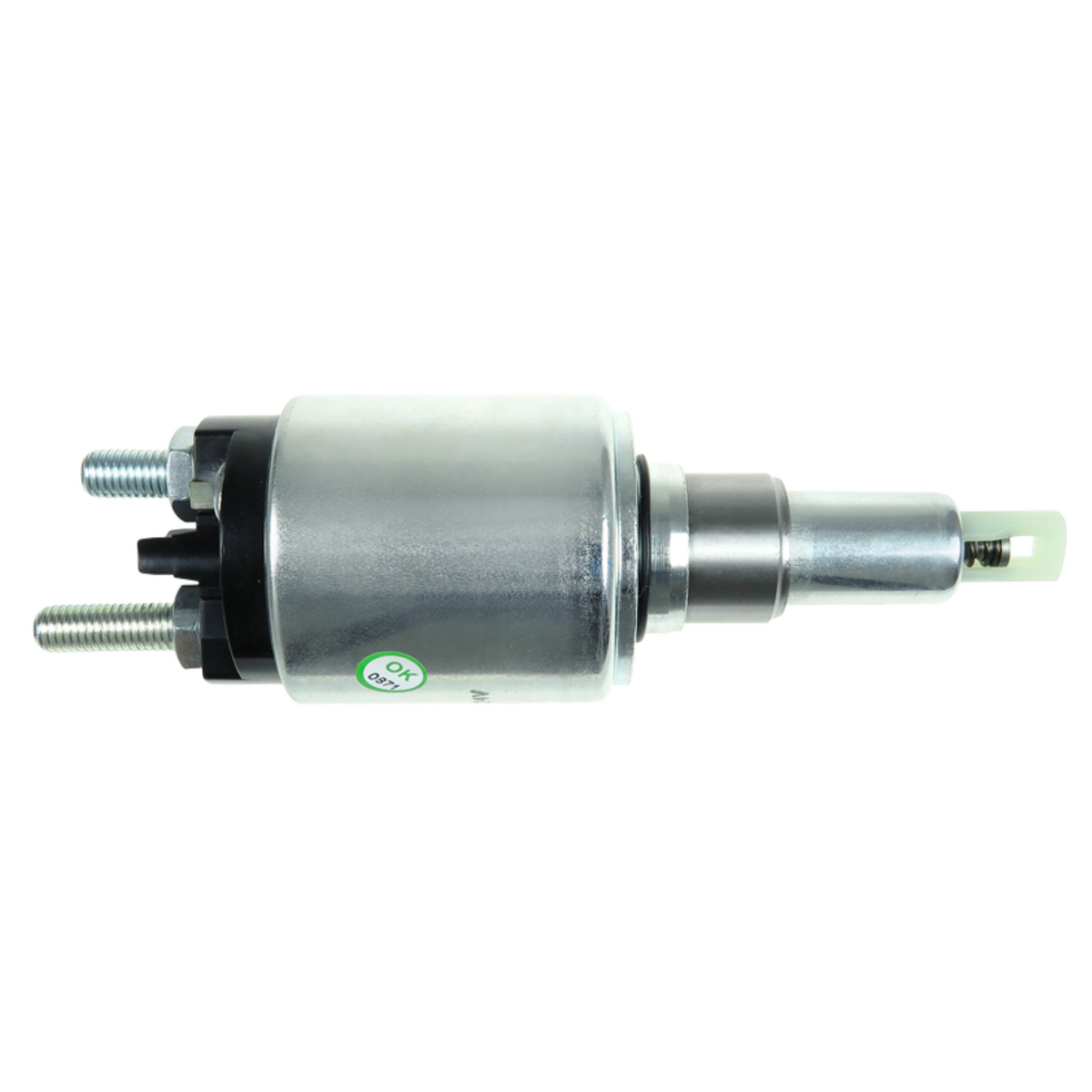

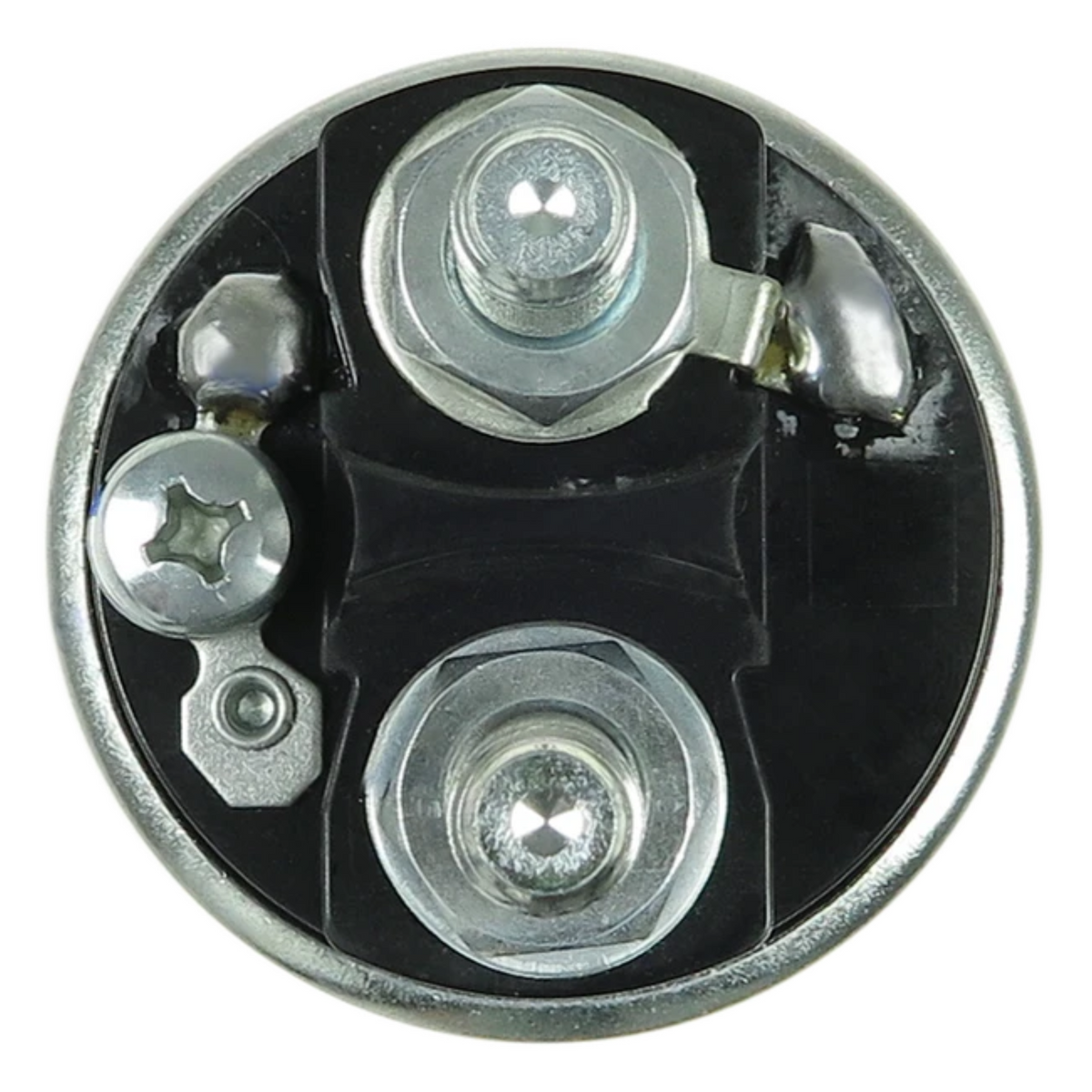

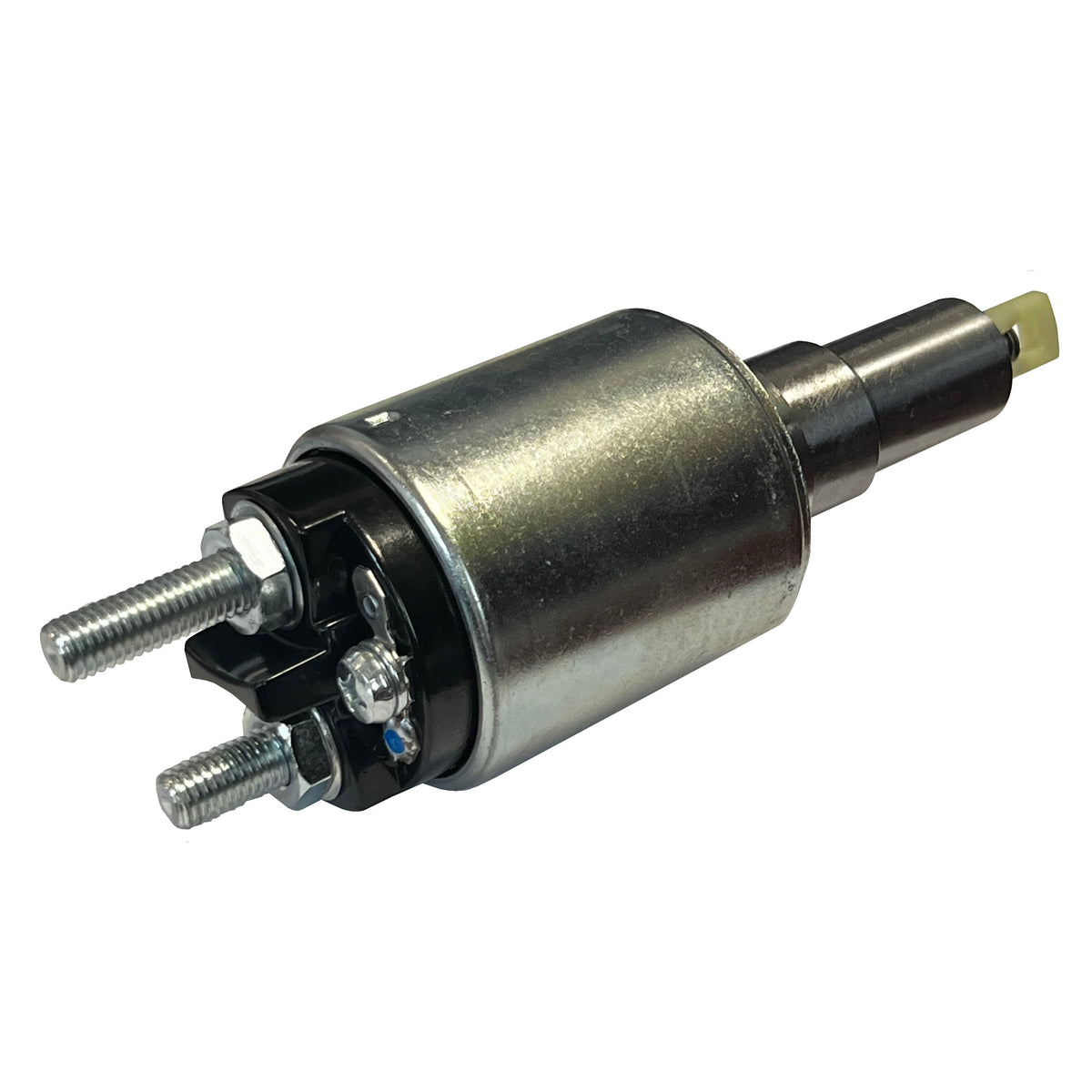

SS0096P Magnetschalter für Anlasser
Ersatzteilnummer: SS0096P
Marke: AS-PL

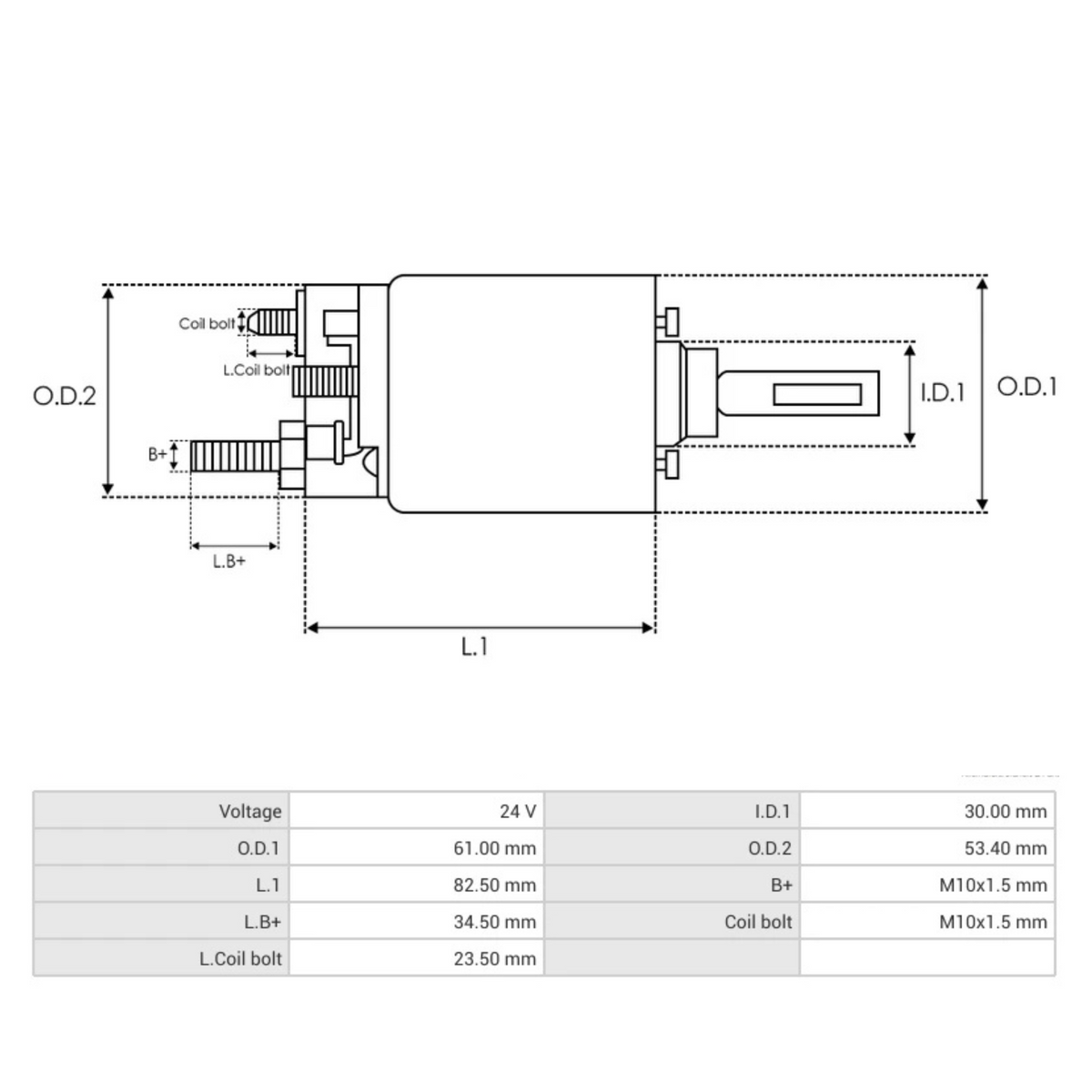

Technische Informationen
| Voltage [ V ] |
24 |
| I.D.1 [ mm ] |
30.00 |
| O.D.1 [ mm ] |
61.00 |
| O.D.2 [ mm ] |
53.40 |
| L.1 [ mm ] |
82.50 |
| B+ [ mm ] |
M10x1.5 |
| L.B+ [ mm ] |
34.50 |
| Coil bolt [ mm ] |
M10x1.5 |
| L.Coil bolt [ mm ] |
23.50 |
Vergleichsnummern
| BOSCH |
2339402220 2339402225 |
| BOSCH |
2339402230 2339402233 |
| AS-PL |
SS0096P |
| CARGO |
330254 335069 |
| CASCO |
CSO10630 |
| DAF |
1658730 1686580 |
| ERA |
227476 |
| CQ |
CQ2031424 |
| FORD |
78GB-11390-AA |
| KRAUF |
SSB0254 SSB8254 SSB9254 |
| POWERMAX |
1016045 81016045 |
| PEUGEOT |
583079 |
| WAI TRANSPO |
66-91110 66-91111 |
| WOODAUTO |
SND12953 |
| ZM |
ZM-5639 |
BOSCH
| 0001241006 |
0001241015 |
| 0001241020 |
0001261012 |
| 0986022260 |
|
VEHICLES
N/A
Starter solenoid
Latvian: Startera relejs
Lithuanian: Starterio relė
Estonian: Starteri solenoid
Russian: Втягивающее реле стартера
Polish: Elektromagnes rozrusznika
German: Magnetschalter für Anlasser
French: Solénoïde de démarreur
Spanish: Solenoide de arranque
Italian: Solenoide d’avviamento
Portuguese: Solenóide do motor de arranque
Dutch: Startrelais of solenoïde
Finnish: Käynnistimen solenoidi
Swedish: Startrelä
Norwegian: Starterens solenoid
Danish: Starterens solenoide
Hungarian: Indítómotor mágnesszelep
Czech: Startovací solenoid
Slovak: Štartovací solenoid
Croatian: Elektromagnet startera
Serbian: Соленоид стартера
Romanian: Solenoid de pornire
Bulgarian: Соленоид на стартера
Greek: Μαγνητικός διακόπτης μίζας
Turkish: Marş solenoidi
