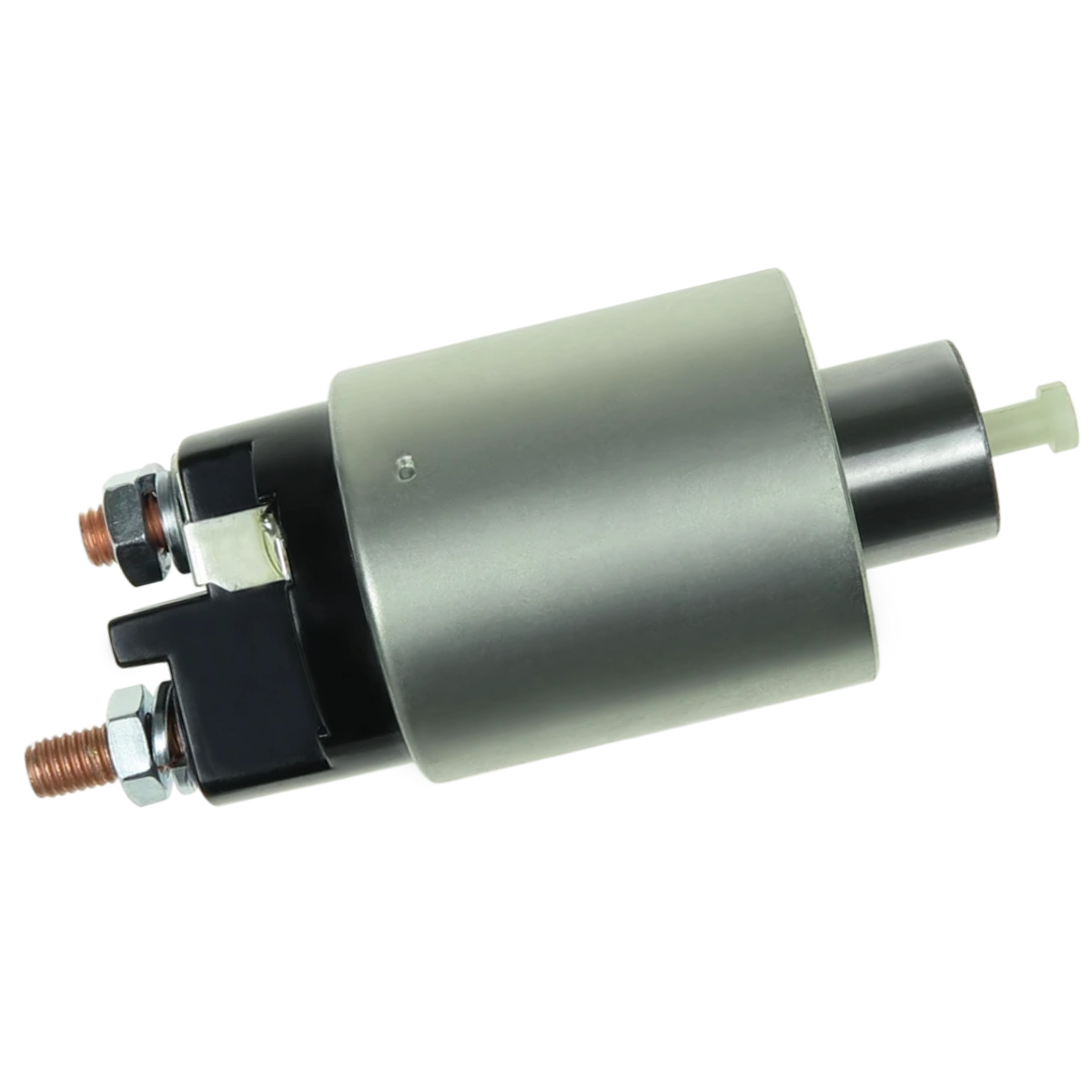

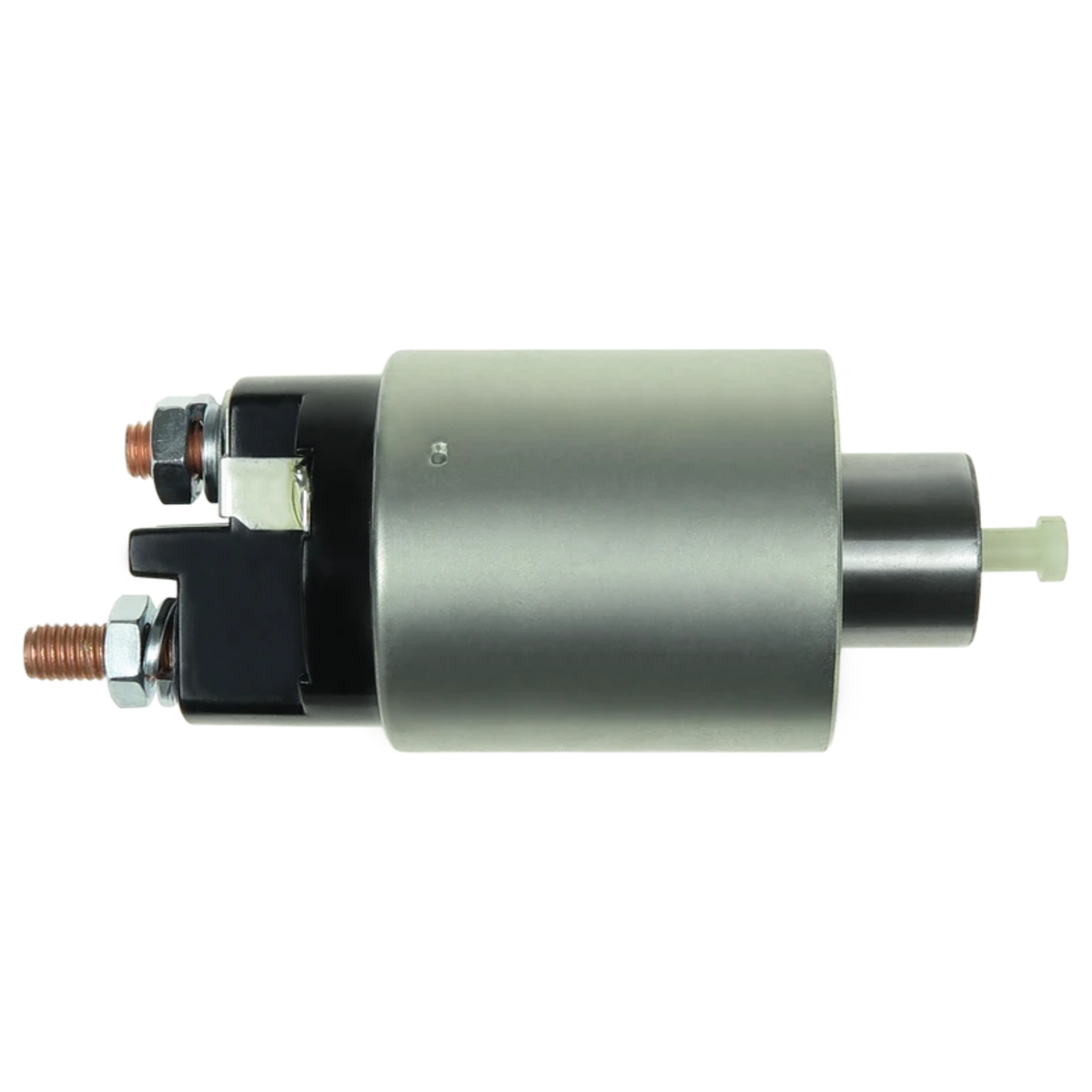

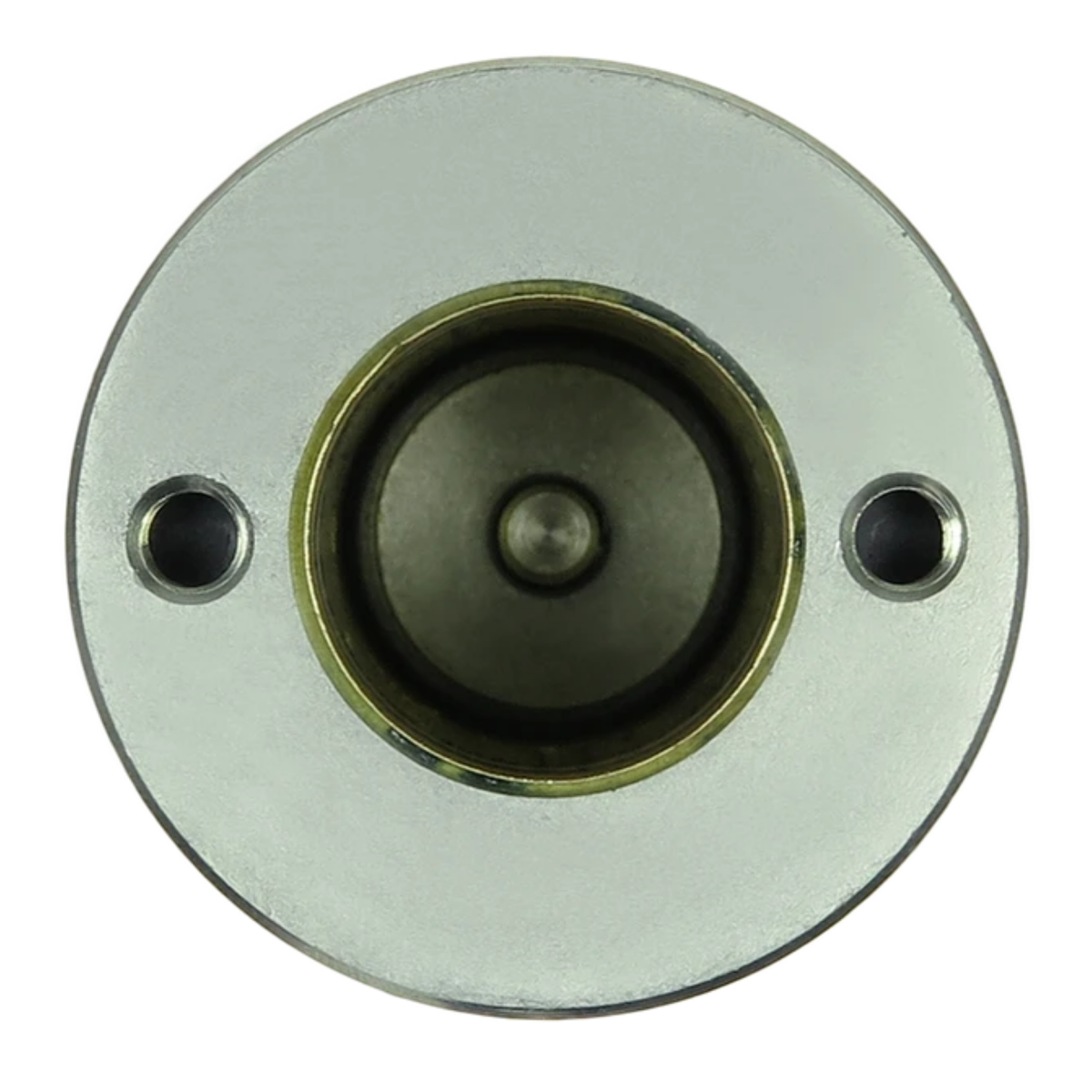

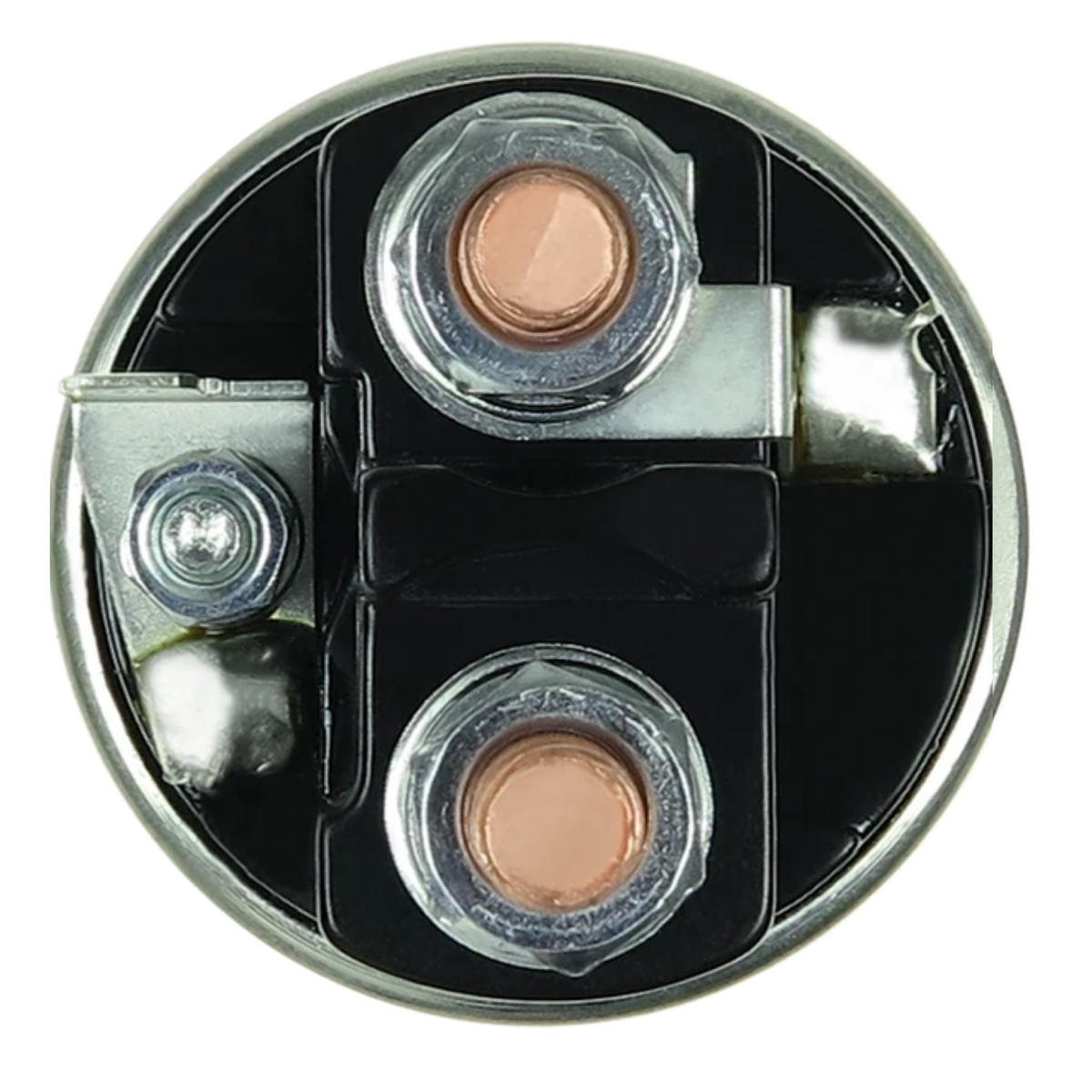

SS5037P Magnetschalter für Anlasser
Teilenummer: SS5037P
Marke: AS-PL

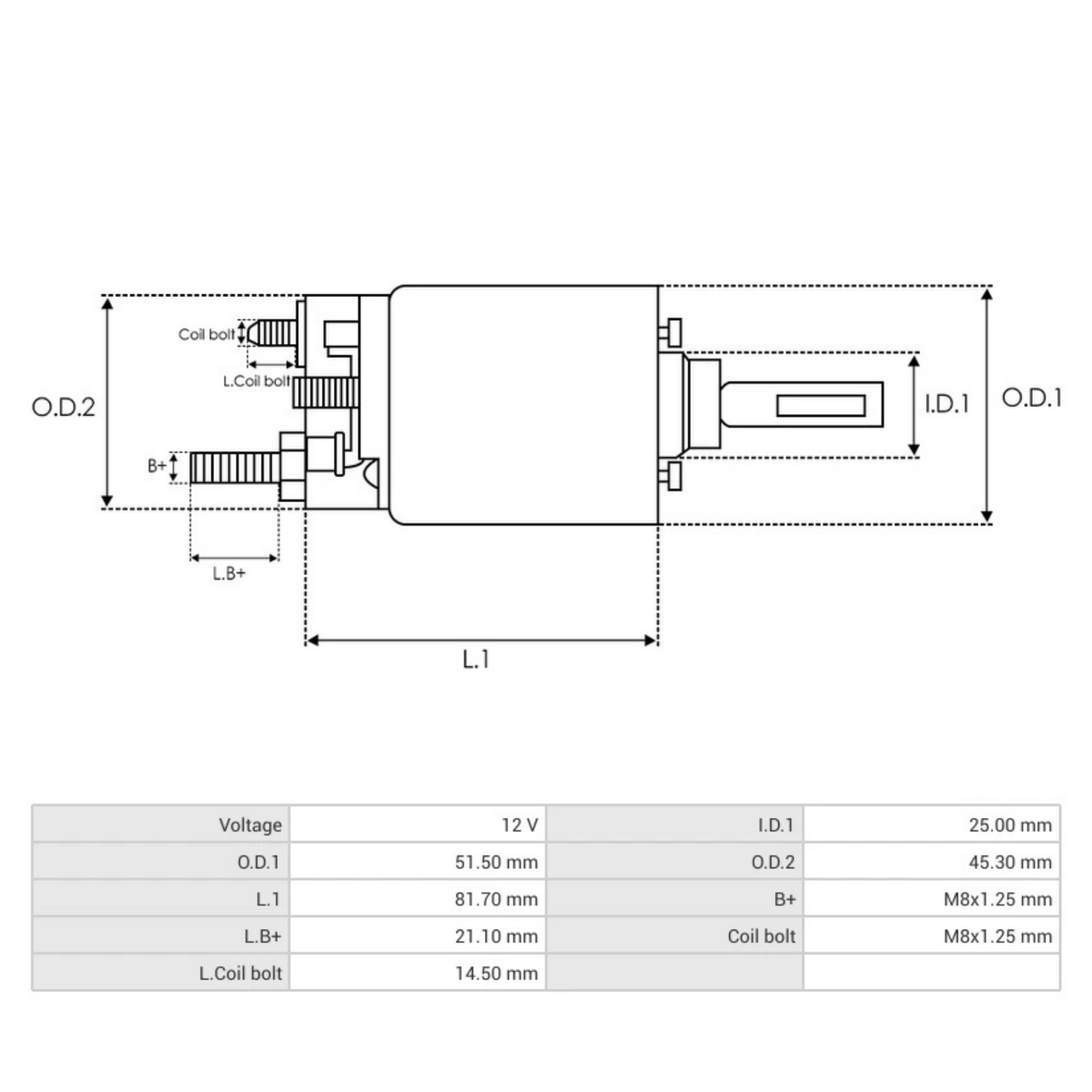

Technische Informationen
| Voltage [ V ] |
12 |
| I.D.1 [ mm ] |
25.00 |
| O.D.1 [ mm ] |
51.50 |
| O.D.2 [ mm ] |
45.30 |
| L.1 [ mm ] |
81.70 |
| B+ [ mm ] |
M8x1.25 |
| L.B+ [ mm ] |
21.10 |
| Coil bolt [ mm ] |
M8x1.25 |
| L.Coil bolt [ mm ] |
14.50 |
Vergleichsnummern
| AS-PL |
SS5037 |
| CARGO |
230788 F032230788 |
| CQ |
CQ2030437 |
| POWERMAX |
1015335 81015335 |
| WOODAUTO |
SND12446 |
| ZM |
ZM-993 |
| KRAUF |
SSM0788 SSM4788 SSM6788 |
| PSH |
054.000.099.136 |
| GHIBAUDI |
E8119 |
MITSUBISHI
| M000T80082 |
M001T80081 |
M001T80082 |
| M001T80381 |
M001T80481 |
|
| M0T20871 |
M0T80082 |
M1T80081 |
| M1T80082 |
M1T80381 |
M1T80481 |
| M1T90281 |
|
|
PSA (Citroen / Fiat / Peugeot)
9656262780
AS-PL
S5303S
