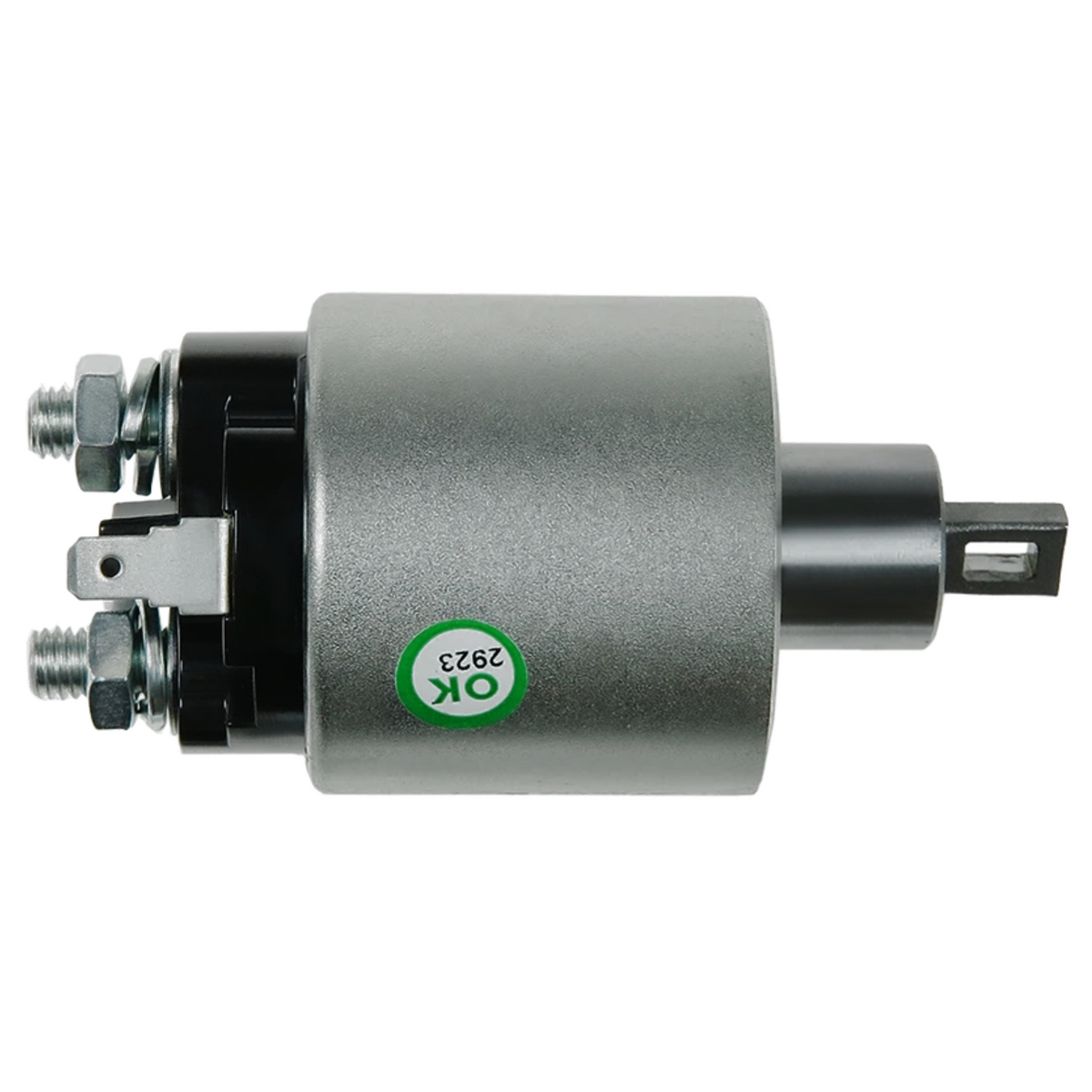

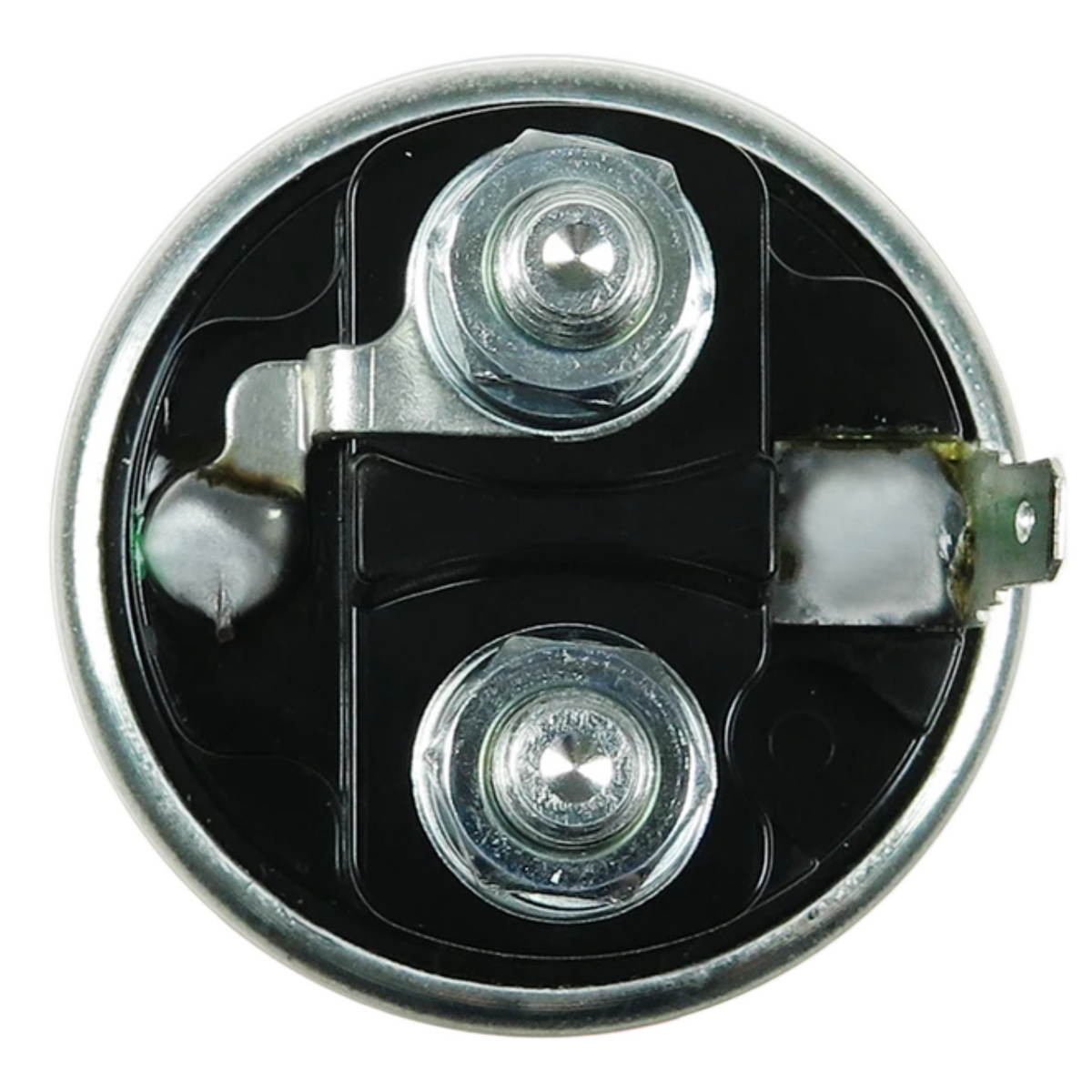

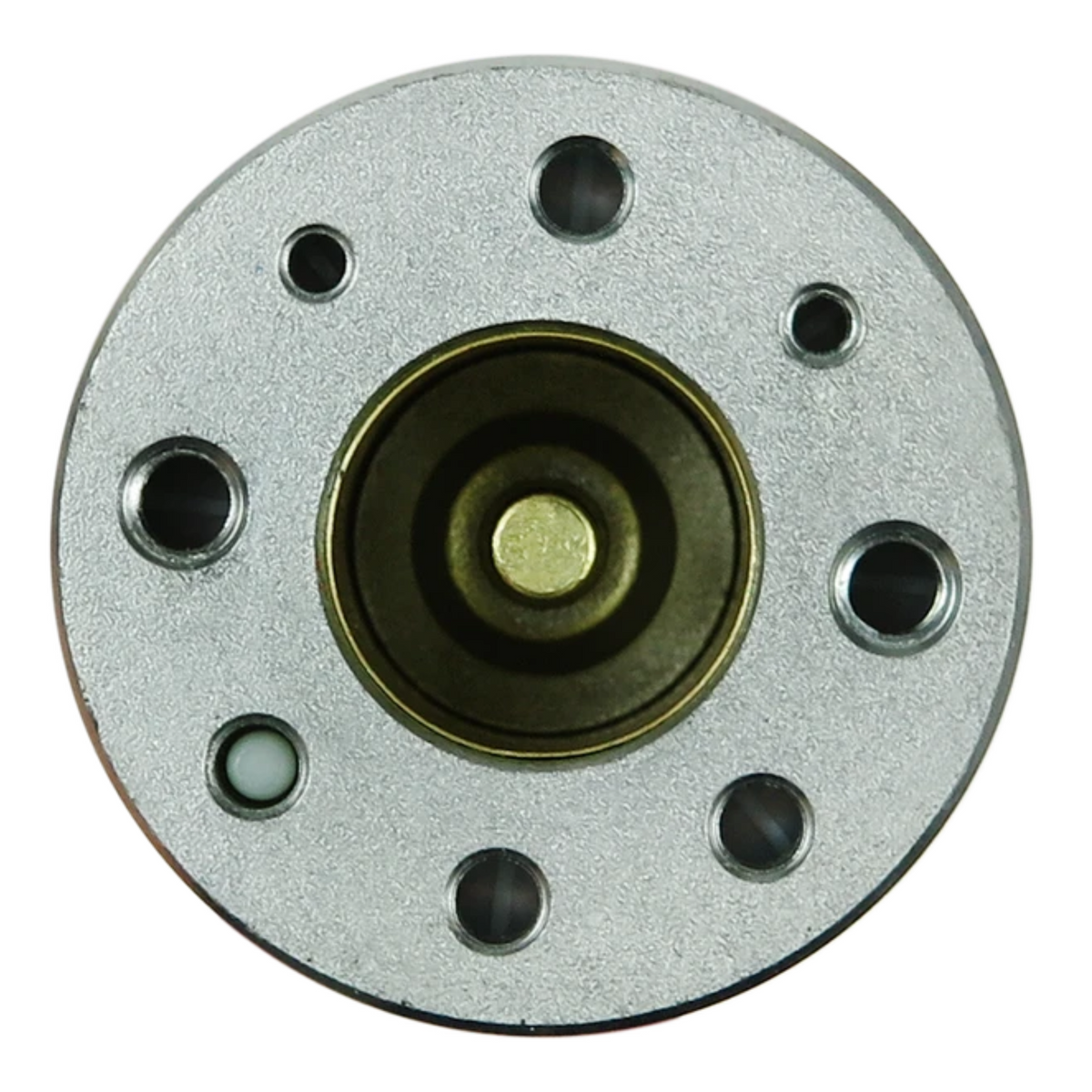

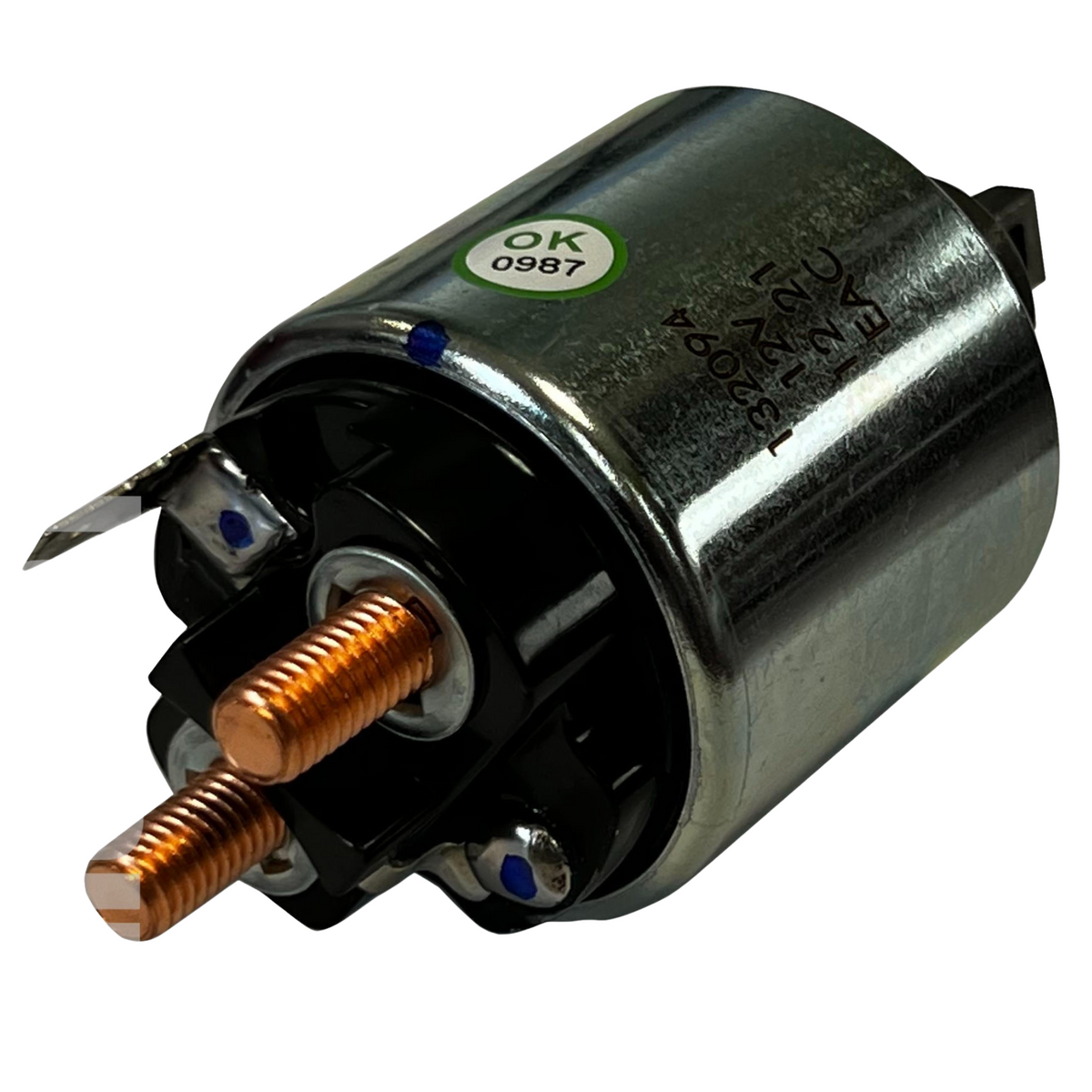

SS2006P Starter Solenoid
Part number: SS2006P
Brand: AS-PL

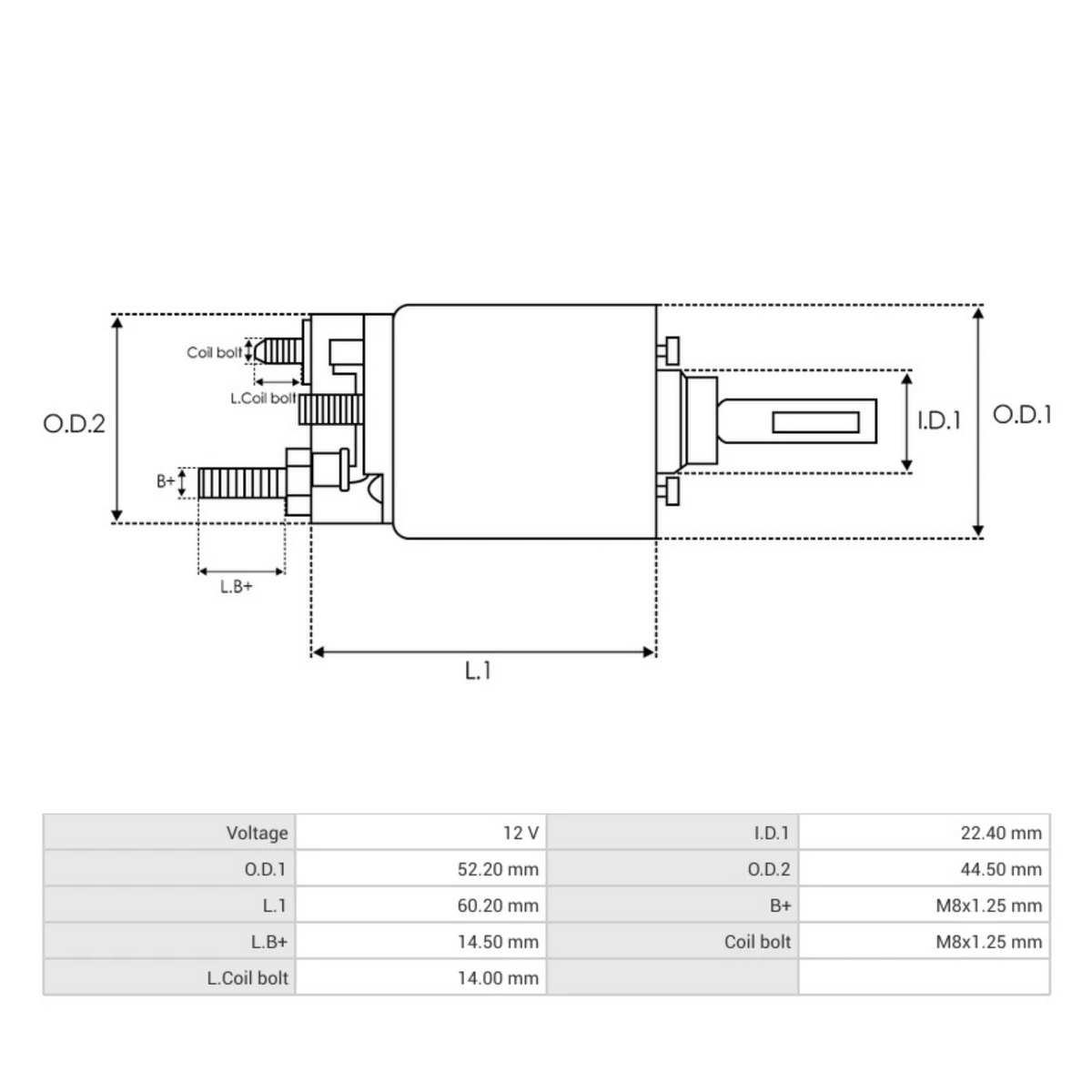

Technical Information
| Voltage [ V ] |
12 |
| I.D.1 [ mm ] |
22.40 |
| O.D.1 [ mm ] |
52.20 |
| O.D.2 [ mm ] |
44.50 |
| L.1 [ mm ] |
60.20 |
| B+ [ mm ] |
M8x1.25 |
| L.B+ [ mm ] |
14.50 |
| Coil Bolt [ mm ] |
M8x1.25 |
| L.Coil Bolt [ mm ] |
14.00 |
Cross-reference Numbers
| AS-PL |
SS2006 |
| CARGO |
132094 |
| BOSCH |
F042010450 |
| ZM |
ZM-710 |
| MAGNETI MARELLI |
940113050237 |
| MAGNETI MARELLI |
AME0237 |
| NISSAN |
23343-M8000 |
| NISSAN |
23343-M8001 |
| NISSAN |
23343-M8003 |
| HITACHI |
2114-27501 |
| HITACHI |
2114-37503 |
| HITACHI |
2114-67505 |
| HITACHI |
6640-0811 |
| CQ |
CQ2030366 |
| ERA |
227685 |
| GHIBAUDI |
E8004 |
| KRAUF |
SSH2094 SSH4094 SSH6094 |
| POWERMAX |
81014224 |
| PSH |
054.000.053 |
| SANDO |
SSO20120 |
| WAI TRANSPO |
66-8109 66-8109-1 |
| WILSON |
60-25-15129 |
| WOODAUTO |
SND1311 |
HITACHI
| S114-315 |
S114-316 |
S114-317 |
S114-317A |
| S114-317B |
S114-318 |
S114-318A |
S114-319 |
| S114-320 |
S114-320A |
S114-345 |
S114-345A |
| S114-364 |
S114-377 |
S114-378 |
S114-413A |
| S114-414A |
S114-424 |
S114-550 |
S114-550A |
| S114-650A |
S114-651A |
S114-883 |
|
KIA
| Make |
Model |
Year Range |
Capacity |
Power (kW/HP) |
Engine codes |
| KIA |
PRIDE (DA) |
01/1990 - 00/2000 |
1.3 |
44/60 |
B3 (8V) |
| KIA |
PRIDE (DA) |
00/1996 - 05/2001 |
1.3 |
47/64 |
B3 (8V) |
| KIA |
PRIDE (DA) |
01/1990 - 09/2001 |
1.3 |
53/72 |
B3 (8V) |
| KIA |
PRIDE (DA) |
01/1990 - 05/1997 |
1.3 i |
51/69 |
B3A7 |
| KIA |
PRIDE Estate |
08/1999 - 05/2001 |
1.3 |
47/64 |
B3 (8V) |
MAZDA
| Make |
Model |
Year Range |
Capacity |
Power (kW/HP) |
Engine codes |
| MAZDA |
121 I (DA) |
00/1987 - 00/1990 |
1.1 (DA101) |
42/57 |
B1, B116 |
| MAZDA |
121 I (DA) |
04/1989 - 00/1990 |
1.3 (DA103) |
40/55 |
B3 |
| MAZDA |
121 I (DA) |
00/1987 - 06/1991 |
1.3 (DA103) |
44/60 |
B3 |
| MAZDA |
121 II (DB) |
01/1990 - 03/1996 |
1.3 16V (DB3PA) |
39/53 |
B3C9 |
| MAZDA |
121 II (DB) |
01/1990 - 03/1996 |
1.3 i 16V (DB3PA) |
53/72 |
B3C9 |
